Flexible Commercial Weighing Scale Solutions
High-precision weight measurement featuring a dedicated 24-bit Sigma-Delta ADC paired with optimized 8-bit MCUs. Our modular architecture supports both LED and LCD displays, providing robust design and maximum cost-efficiency for retail, industrial, and commercial applications.
Solution Overview
High-precision weighing requires the perfect balance of accuracy and efficiency. Our solution features a dedicated 24-bit Delta-Sigma ADC paired with specialized 8-bit MCUs, delivering a modular architecture for both LED and LCD displays. Designed for rapid response and ultra-low power consumption, this platform ensures reliable performance across all retail and industrial weighing applications.
Application Areas
- Retail Scales (Price computing with LED/LCD)
- Industrial Scales (Platform & floor scales)
- Kitchen & Food Scales (Compact & battery-efficient)
- Precision Balances (High-resolution measurement)

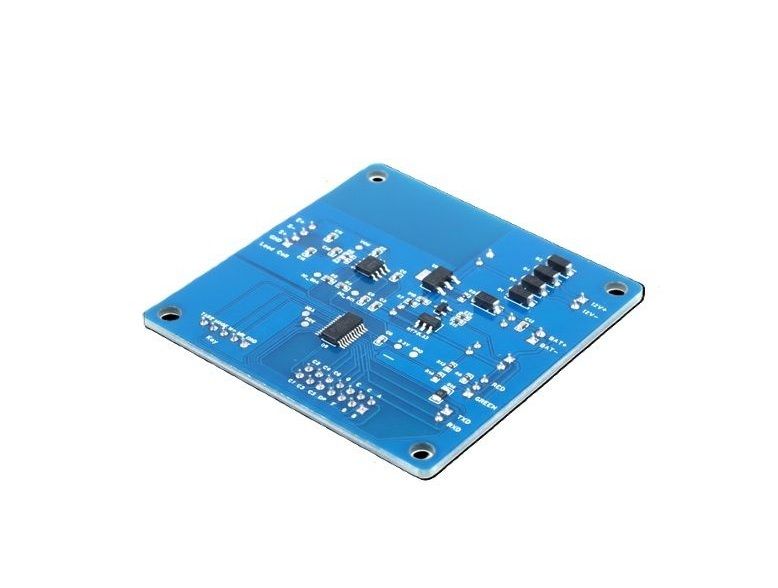

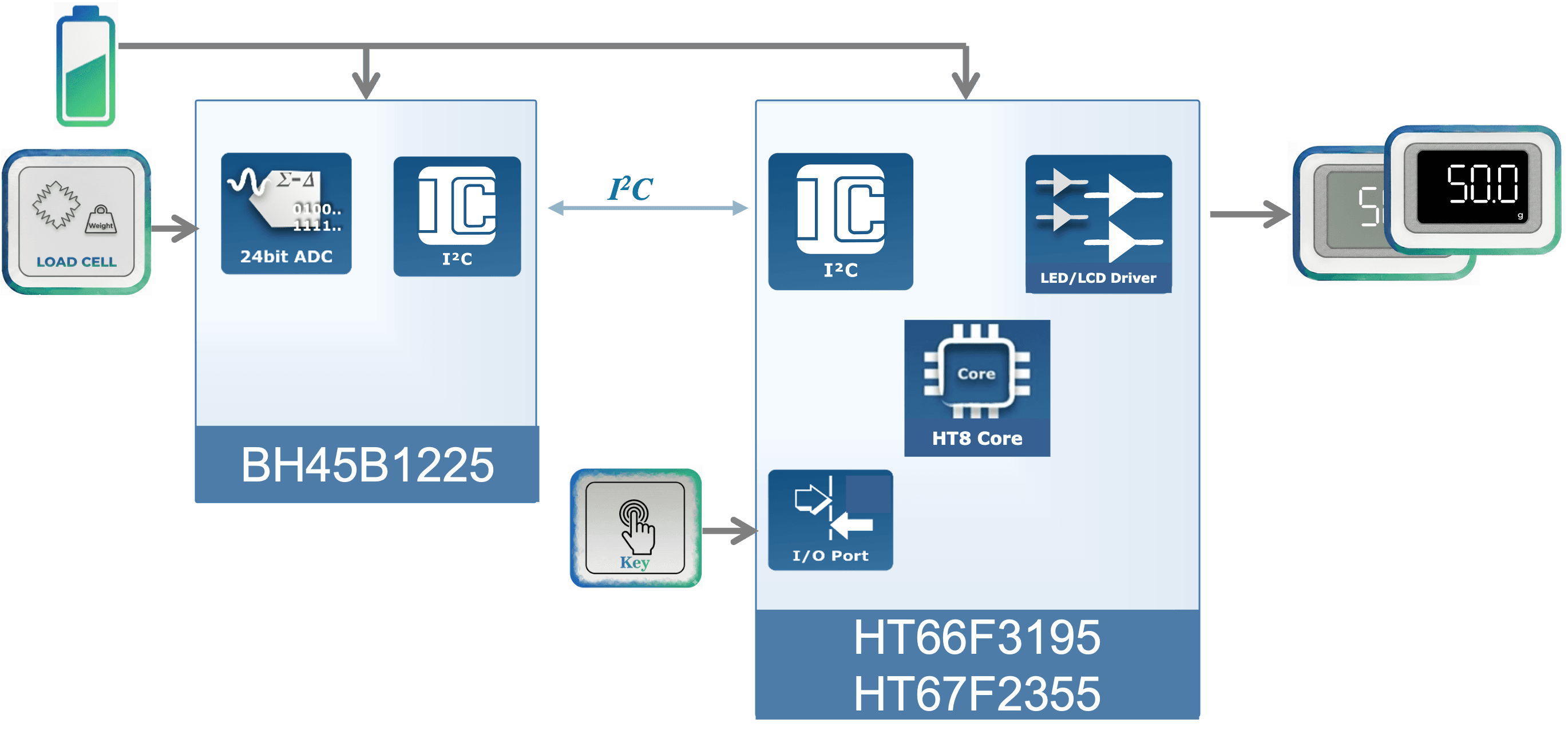

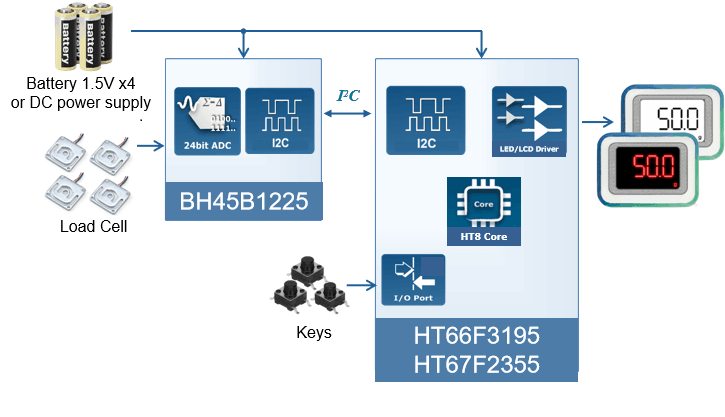

Application Block Diagram
Fast response and high resolution for precise measurement
High Precision 24-bit Σ-Δ ADC with 1.6kHz sampling rate.
Extends battery life for portable retail scales
Ultra-Low Power System-wide sleep current < 1.5μA.
Flexible architecture to fit various product lines and budgets
Modular Flexibility Optimized pairings for LED and LCD displays.
Core Features & Benefits
High-Precision Measurement
24-bit Sigma-Delta ADC with 1.6kHz sampling rate. High-resolution output ensures fast and stable weight detection.
Ultra-Low Power
System-wide sleep current < 1.5μA. Extends battery life significantly, perfect for portable and street vendor scales.
Flexible architecture to fit various product lines and budget requirements.
Modular Flexibility Optimized pairings for LED (HT66F3195) or LCD (HT67F2355).
Simplified Calibration
Supports multi-point calibration and zero tracking algorithms. Streamlined software implementation for faster production setup.
Robust & Reliable
Industrial-grade reliability with excellent ESD/EMI performance. Stable operation in diverse commercial and retail environments.
Expandable Connectivity
Integrated UART/I2C interfaces. Easy integration with Bluetooth modules, thermal printers, or POS systems.
Recommended MCU Products
Select the optimal chip model based on your product requirements
BH45B1225
RECOMMENDED24-Bit A/D Peripheral
📊 Key Specifications
✨ Features
HT66F3195
A/D Flash MCU with EEPROM
📊 Key Specifications
✨ Features
HT67F2355
A/D Flash MCU with LCD Driver
📊 Key Specifications
✨ Features
Development Support & Resources
Comprehensive development resources to accelerate your time-to-market
Reference Design
Complete weighing scale reference design with schematics and PCB.
SDK & Drivers
Load cell drivers, calibration routines, and sample code.
Algorithm Library
Calibration, temperature compensation, and zero tracking algorithms.
Development Tools
Programmer/debugger and configuration tools.
Technical Documentation
Datasheets, application notes, and weighing scale design guidelines.
Training & Webinars
Weighing scale design training and technical webinars.
Need More Technical Support?
Our technical team is ready to provide professional consultation and customized solutions
Frequently Asked Questions
Does the solution support high-precision measurement for commercial scales?
Yes. Our solution utilizes a dedicated 24-bit Delta-Sigma ADC (BH45B1225). Its high-resolution performance and low-noise architecture provide a solid foundation for developers to meet stringent accuracy requirements in commercial weighing applications.
What types of load cells are supported?
The platform supports a wide range of strain gauge load cells (single-point, shear beam, and compression types). With the BH45B1225’s internal Programmable Gain Amplifier (PGA) supporting gains from 1x to 128x, it can easily interface with load cells of varying sensitivities (e.g., 1mV/V to 3mV/V).
Does the hardware include environmental monitoring?
Yes. The BH45B1225 ADC includes a built-in temperature sensor. This allows the system to monitor ambient temperature changes, providing essential data for developers to implement their own calibration or stability algorithms.
What is the maximum weighing capacity?
The capacity is primarily determined by your choice of load cell. Our measurement platform provides the necessary resolution and stability to support applications ranging from compact kitchen scales (1kg) to industrial platform scales (500kg+).
Can the scale interface with external systems like POS or printers?
Absolutely. By pairing the ADC with our feature-rich MCUs (HT66F3195 or HT67F2355), the solution offers multiple communication interfaces including UART and I2C. This enables easy integration with Bluetooth modules, thermal printers, or POS systems.
What display types are supported by this solution?
We offer a modular approach: use the HT66F3195 for high-current LED driving (ideal for street vendors and retail) or the HT67F2355 with its integrated hardware LCD driver for multi-functional retail displays.
Does the solution meet OIML R76 standards?
Yes, our MCU's 24-bit ADC and calibration algorithms are designed to meet OIML R76 Class III accuracy requirements for commercial weighing scales.
