Flexible SoC Solution for LCD & LED Blood Pressure Monitors
Integrates a medical-grade Analog Front End (PGA, SCF, Constant Current) for clinical accuracy. Supports flexible designs for both single-chip LCD and stylish LED models with ultra-low power consumption.

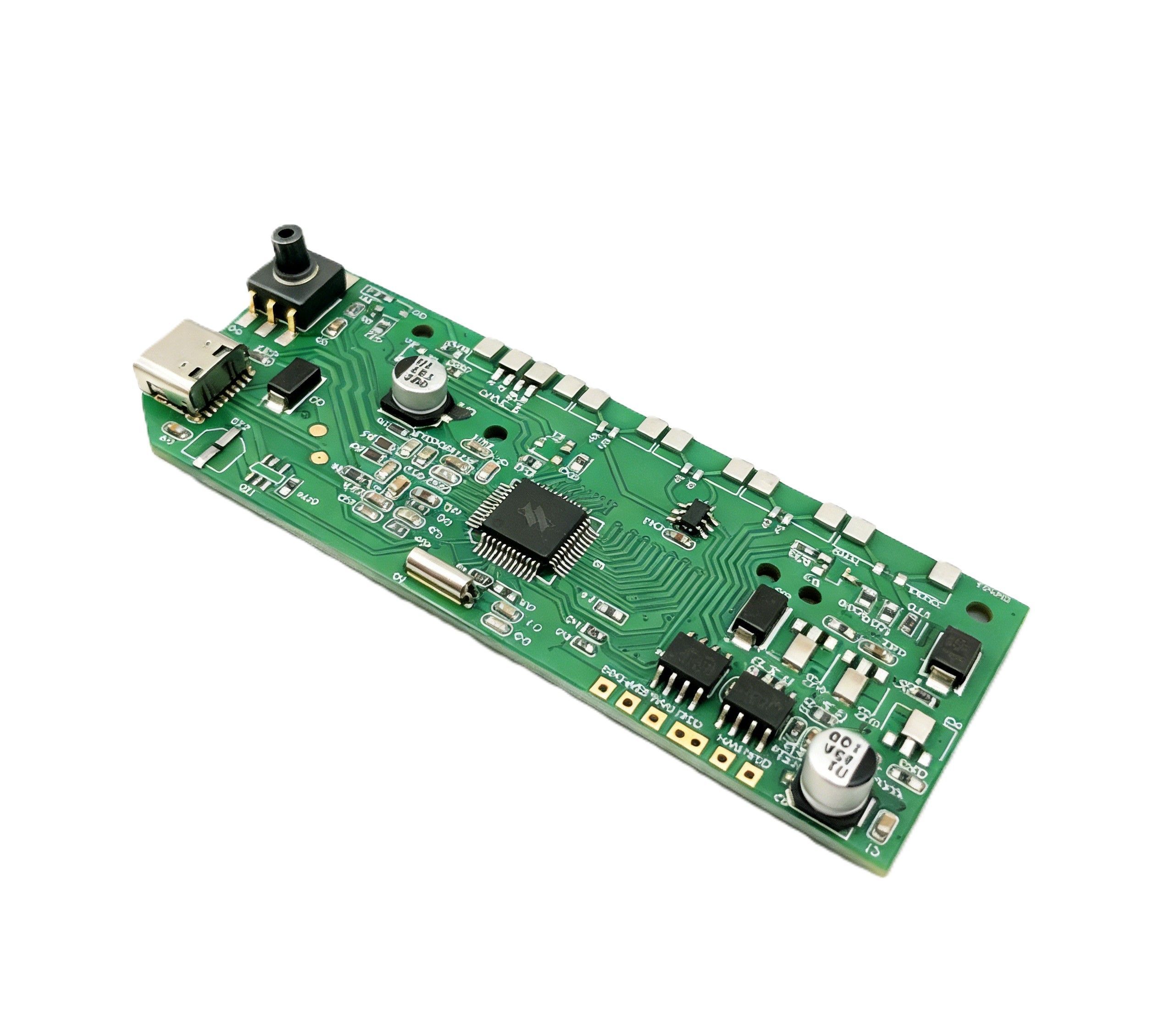

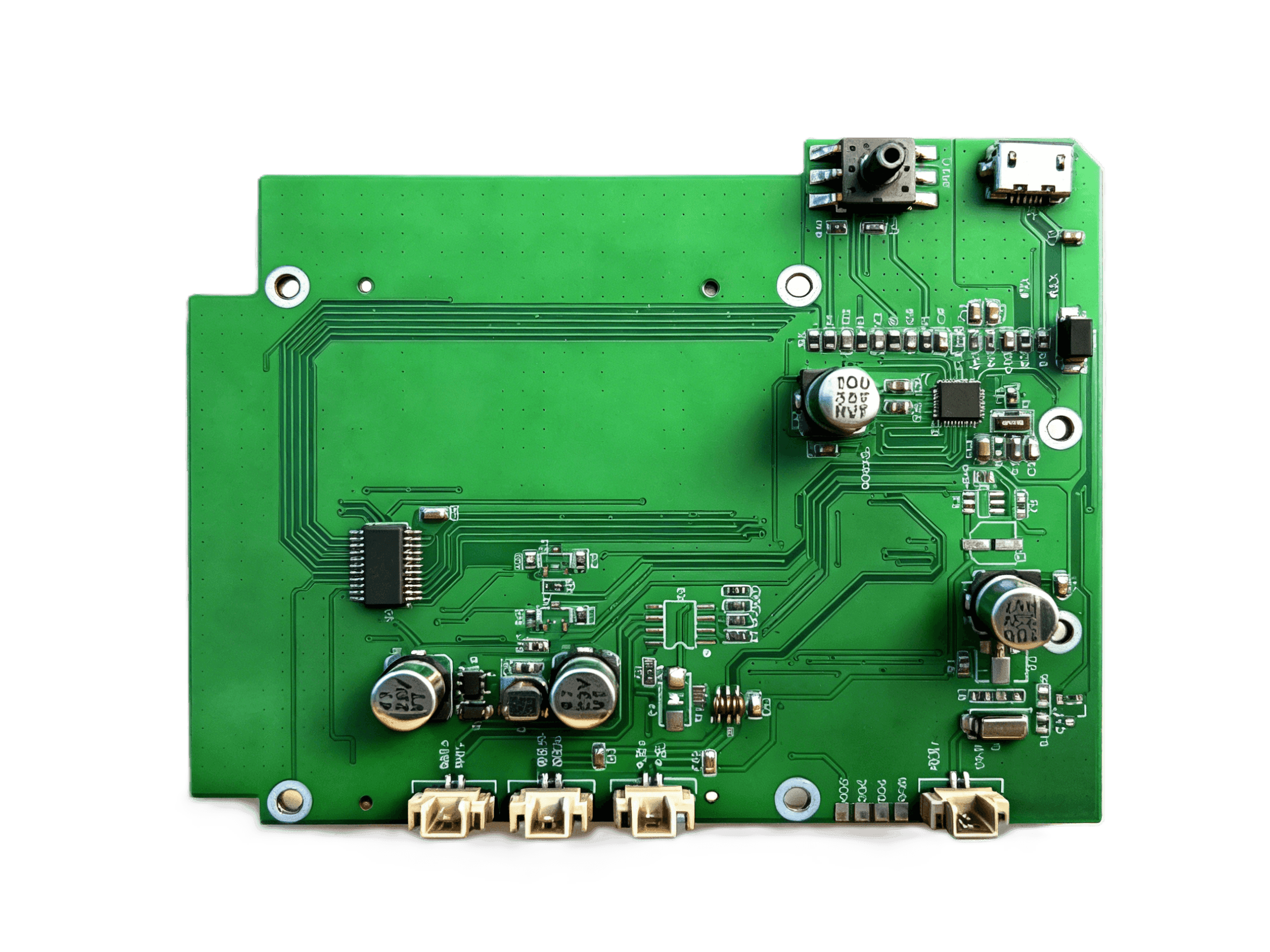

Solution Overview
Our solution utilizes the Holtek BH67F2265 SoC, featuring a fully integrated medical-grade Analog Front End (AFE)—including PGA, SCF, and Constant Current Generator—to deliver clinical-level accuracy without external analog components. The flexible architecture supports both single-chip LCD and stylish LED designs, with optional Voice Guidance, enabling manufacturers to create diverse, high-value home healthcare devices with ultra-low power consumption.
Application Areas
- Smart Home Blood Pressure Monitors (Arm / Wrist types)
- Voice-Guided Healthcare Devices (Accessible design for elderly)
- Stylish LED Blood Pressure Monitors
- Clinical & Tunnel Type Automated BP Devices
- Multi-parameter patient monitors

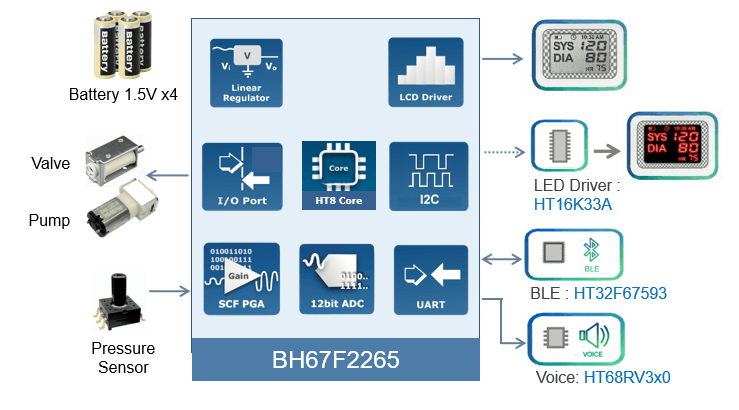

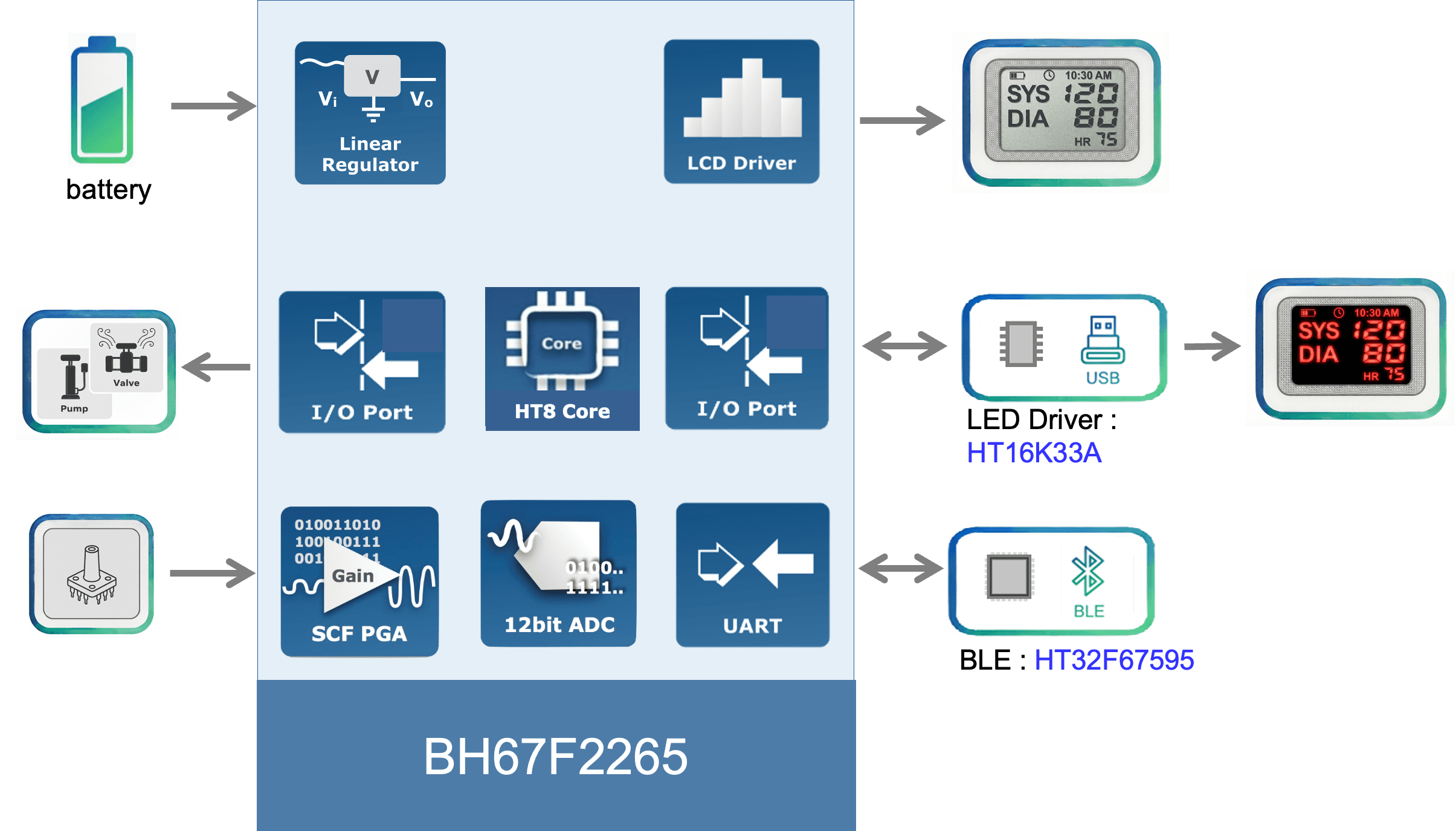

Application Block Diagram
High Precision Integrated Medical AFE
Built-in PGA & Constant Current AFE for reliable sensing.
Ultra-Low Power Extended Battery Life
<1.5μA Sleep Current maximizes standby time.
High Integration Cost-Effective SoC
All-in-One SoC (LCD+LDO+AFE) reduces BOM.
Core Features & Benefits
Flexible Display & High Integration
Supports two configurations: Single-chip LCD (with built-in 32×4 driver) or Stylish LED (with external HT16K33A). Integrated LDO (3.3V/3.0V) ensures stable operation regardless of battery voltage drop.
Advanced Oscillometric Algorithms
Proprietary algorithm library optimized for the BH67F2265, featuring Smart Pressurization, Irregular Heartbeat Detection (IHB), and Motion Artifact Rejection to ensure clinical-grade accuracy.
Integrated Medical AFE (Not just ADC)
Built-in PGA (Programmable Gain Amplifier), SCF (Switched Capacitor Filter), and Constant Current Generator. This high-level integration eliminates external analog components, significantly reducing noise and improving signal reliability.
Ultra-Low Power MCU
The BH67F2265 achieves a sleep current of <1.5μA, maximizing battery life. The system supports independent power management for the MCU and connectivity modules, ideal for portable home use.
Production-Ready Calibration
Designed for manufacturing efficiency. Supports 15-second Automated Calibration for up to 4 PCBAs simultaneously, drastically reducing production time and testing costs for mass production.
Smart Connectivity & Voice
Enhance user experience with optional Voice Guidance (via HT68RV03x) and BLE Connectivity. Enables real-time data tracking, clear audio feedback, and seamless cloud synchronization.
Recommended MCU Products
Select the optimal chip model based on your product requirements
BH67F2265
RECOMMENDEDBlood Pressure Meter LCD Flash MCU
📊 Key Specifications
✨ Features
- R-type Sensor Blood Pressure AFE
- Low Power Consumption and Wide Operating Voltage
- Highly Integrated Memory and Interfaces
- Enhanced System Safety and Reliability
HT16K33A
RAM Mapping 16×8 LED Controller Driver with keyscan
📊 Key Specifications
✨ Features
- Integrated Control & Interface
- High-Performance LED Driving
- System & Power Efficiency
HT68RV033
Voice Peripheral OTP MCU
📊 Key Specifications
✨ Features
- High-Fidelity Voice Output
- Compact & Cost-Effective
- Easy System Integration
HT32F67593
High-Performance 32-Bit Arm® Cortex®-M0+ BLE MCU
📊 Key Specifications
✨ Features
- High-Performance Low-Power Core
- Robust Wireless Connectivity
- Rich Peripheral Integration
- Optimized for Wearables
Development Support & Resources
Comprehensive development resources to accelerate your time-to-market
Reference Design
Complete blood pressure monitor reference design with schematics and PCB.
SDK & Drivers
Pressure sensor drivers, motor control, and sample code.
Algorithm Library
Oscillometric measurement algorithm and artifact rejection library.
Development Tools
Programmer/debugger and configuration tools.
Technical Documentation
Datasheets, application notes, and design guidelines.
Training & Webinars
Blood pressure monitor design training and webinars.
Need More Technical Support?
Our technical team is ready to provide professional consultation and customized solutions
Frequently Asked Questions
Does the solution meet AAMI/ESH/ISO 81060-2 standards?
Yes. Our solution is built on a High-Integration Medical AFE (including PGA, SCF, and Constant Current Generator) rather than a standard ADC. Combined with our proprietary oscillometric algorithms, it ensures clinical-grade signal quality and accuracy (±3mmHg pressure, ±5% heart rate), fully compliant with AAMI, ESH, and ISO 81060-2 standards.
How does this solution improve mass production efficiency?
It is designed for rapid manufacturing. The solution supports a 15-second Automated Calibration process. Our dedicated production tool allows 4 PCBAs to be calibrated simultaneously (switching between 0, 150, and 300 mmHg), significantly reducing testing time and production costs compared to traditional methods.
What battery life can be expected?
Excellent longevity. The BH67F2265 MCU features an ultra-low standby current of <1.5μA. Even with 4×AA batteries, the system can support 500+ measurements, typically lasting 1-2 years of normal home use. The dual-chip power architecture also ensures that connectivity modules (BLE) do not drain power when idle.
Is smartphone connectivity supported?
Yes, via our Flexible Dual-Chip Architecture. You can easily integrate an external BLE module with the MCU. Our platform supports seamless data transmission for trend analysis and cloud synchronization, making it ideal for modern smart healthcare applications.
Can the solution support different display types and voice features?
Absolutely. The SoC is versatile: For Cost-Efficiency: Use the single-chip solution with built-in LCD driver (64LQFP). For Premium Designs: Pair with the HT16K33A driver for stylish LED displays (32QFN). Voice Guidance: Optional Voice MCU (HT68RV03x) can be added to any configuration for clear audio prompts.
Can the MCU detect irregular heartbeat (arrhythmia)?
Yes. The built-in algorithm library includes IHB (Irregular Heartbeat) Detection. By analyzing pulse interval variations during measurement, the device automatically alerts users to potential arrhythmia risks.
Do you provide support for regulatory certification?
Yes, comprehensive support is included. We provide complete design documentation, circuit diagrams, and pre-compliance test reports. Our team offers professional consultation to assist you in navigating FDA, CE, and CFDA certification processes smoothly.
